STH-20-9

700801 / Setscrew

Item #101181207

Auto Replenish

each One-time purchase

Product Details

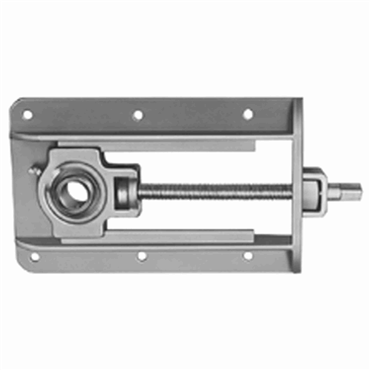

Steel Take up frame and Take up bearing housing assembly kit
Powder coated epoxy cast iron housing with extended inner ring bearings
Zone hardened inner ring with 120° spacing setscrew with diamond faceted setscrews
Felt labyrinth seal and flinger for dry & dusty environment
Unique land riding retainer design provides superior pocket clearance that allows for 360° grease circulation around the rolling elements resulting in better retained and utilized lubrication.

Specifications

Locking Type	Set Screws
Series	STH
Bore Size - Inch	1.25
Expansion	No
Seal Type	Felt Labyrinth
Angle of Misalignment	±2°
Travel (in)	9
Overall Height	1.75 in
Bore Size	1.25 in
Measure Units	Inch
Insert No.	2-14
Replaceable Insert	Yes
Inner Race Heat Treat Method	Zone-Hardened
Shaft Height	6.563 in
Overall Height (in)	1.75
Frame Base Width	8.0625
Insert Material	52100 Bearing Steel, Black Oxided
Lubrication	Lithium Complex NLGI 2 Grease
Retainer Type	Land Riding
Misalignment Type	Static Only
Bearing Insert Coating	Black Oxide
Inch/Metric	Inch
Frame Overall Height	1.75
Relubricatable	Yes
Housing Bolt Through Hole (in)	16.875
Overall Length (in)	19.6875
Duty Series	Standard
Bore Shape	Straight
Housing Construction	One Piece
Bolt Size (in)	3/8
Outer Ring Land Profile	Standard
Internal Clearance	Standard
End Cap	No
Speed [Max]	4650 rpm
Housing Width	2.5 in
Housing Width (in)	2.5
Frame Type	Center Pull Wide Slot
Platform	Take Up Assembly
Housing Material	Cast Iron
Overall Length	19.688 in
Frame Overall Length	16.875
Operating Temperature [Max]	220 °F
Bolt Size	3 in
Bearing Type	Ball Bearing
Travel	9 in
Centerline to Front Face (in)	1.25
Maximum Operating Temperature	220
Housing Bolt Through Hole	16.875 in
Centerline to Front Face	1.25 in
Weight	17.4 LB
EAN or UPC	662461006634
