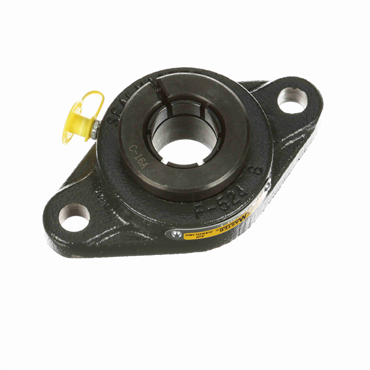

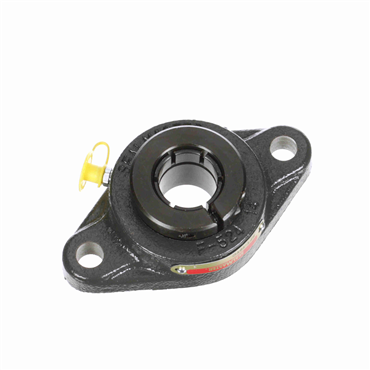

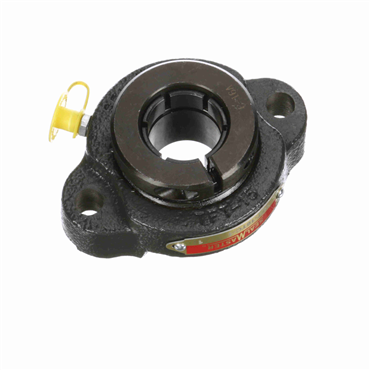

Powder coated epoxy cast iron housing with extended inner ring bearings
Skwezloc® concentric locking for near perfect concentricity
Single lip contact seal
Unique land riding retainer design provides superior pocket clearance that allows for 360° grease circulation around the rolling elements resulting in better retained and utilized lubrication.
Sealmaster® exclusive lock pin & dimple for direct lubrication and anti-rotation
Insert No.
2-1TC
Housing Base
Solid
Overall Length
3.75 in
Relubricatable
Yes
Duty Series
Standard
Operating Temperature [Max]
220 °F
Inner Race Heat Treat Method
Zone-Hardened
Bore Size - Inch
1
Bore Shape
Straight
Bearing Type
Ball Bearing
Misalignment Type
Static Only
Seal Type
Single Lip Contact
Bolt Hole Spacing
3 in
Collar OD (in)
1.9375
Bolt Center-to-Center Length (in)
3
Outer Ring Land Profile
Standard
Mounted Unit Duty
Standard Duty
Locking Device
Skwezloc® Concentric Collar
Speed [Max]
6350 rpm
Housing Color
Gray
Expansion
No
Overall Height to Inner Ring
1.5 in
Special Features
w/Grease Fitting
Shaft Dia.
1 in
Bore Size
1 in
Measure Units
Inch
Housing Construction
One Piece
Housing Material
Cast Iron
Series
TFT-T
Bolt Size
0.375 in
Locking Type
Concentric
Bolt Size (in)
0.375
Bolt Center-to-Center Length
3 in
Inch/Metric
Inch
Lubrication
Lithium Complex NLGI 2 Grease
Pilot Configuration
No Pilot
Flange Type
2-Bolt Flange
Retainer Type
Land Riding
Maximum Operating Temperature
220
End Type
Open End
Insert Material
52100 Bearing Steel, Black Oxided
Housing Length
3 3/4 in
Overall Height to Inner Ring (in)
1.5
Bearing Design
Non-Expansion
Internal Clearance
Standard
Bolt Circle Dia.
3 in
Angle of Misalignment
±2°
End Cap
No
Bearing Insert Coating
Black Oxide
Overall Length (in)
3.75
Platform
Gold Line Ball Bearing
Replaceable Insert
Yes
Collar O.D.
1.938 in
Weight
1.355 LB
EAN or UPC
662461007860
