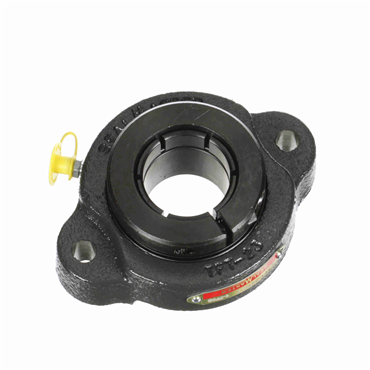

Cast Iron 2-Bolt Flange Concentric Lock Standard Duty Flange Unit

Sealmaster

TFT-23TC-1

Cast Iron 2-Bolt Flange Concentric Lock Standard Duty Flange Unit

Item #100736567

2-Bolt Flange Type
Cast Iron Housing Material
Black Oxide Bearing Insert Coating
Concentric Locking Type

Auto Replenish

each One-time purchase

Product Details

2-Bolt Flange Type
Cast Iron Housing Material
Black Oxide Bearing Insert Coating
Concentric Locking Type

features

Powder coated epoxy cast iron housing with extended inner ring bearings
Skwezloc® concentric locking for near perfect concentricity
Single lip contact seal
Unique land riding retainer design provides superior pocket clearance that allows for 360° grease circulation around the rolling elements resulting in better retained and utilized lubrication.
Sealmaster® exclusive lock pin & dimple for direct lubrication and anti-rotation

Specifications

Overall Length (in)	4.875
Series	TFT-T
Inner Race Length (in)	1.81
Internal Clearance	Standard
Locking Device	Skwezloc® Concentric Collar
Overall Height to Inner Ring (in)	1.813
Platform	Gold Line Ball Bearing
Insert Material	52100 Bearing Steel, Black Oxided
Lubrication	Lithium Complex NLGI 2 Grease
Radial Static Load Capacity (lb)	3493
Overall Length	4.875 in
Retainer Type	Land Riding
Bolt Size	0.375 in
Length Through Bore (in)	1.81
Relubricatable	Yes
End Type	Open End
Angle of Misalignment	±2°
Mounted Unit Duty	Standard Duty
Insert No.	2-17TC
Shaft Dia.	1.4375 in
Inner Race Heat Treat Method	Zone-Hardened
Bearing Insert Coating	Black Oxide
Bolt Hole Spacing	3 15/16 in
Misalignment Type	Static Only
Housing Color	Gray
Flange Type	2-Bolt Flange
Maximum Operating Temperature	220
Bearing Design	Non-Expansion
Housing Material	Cast Iron
Collar OD (in)	2.5625
Measure Units	Inch
Housing Width	3.69 in
Overall Height	1.762 in
Operating Temperature [Max]	220 °F
Radial Dynamic Load Capacity (lb)	5782
Bolt Center-to-Center Length	3.938 in
Locking Type	Concentric
Housing Base	Solid
Housing Length	4 7/8 in
Bolt Center-to-Center Length (in)	3.9380
Housing Construction	One Piece
Pilot Configuration	No Pilot
Inner Race Length	1.81 in
Overall Width (in)	3.69
Inch/Metric	Inch
Replaceable Insert	Yes
Overall Width	3.69 in
Radial Dynamic Load Capacity	5782 lb
Bolt Circle Dia.	3 15/16 in
Collar O.D.	2.563 in
Bore Shape	Straight
Outer Ring Land Profile	Standard
Bolt Size (in)	0.3750
Special Features	w/Grease Fitting
Overall Height to Inner Ring	1.813 in
Bore Size	1.438 in
Bore Size - Inch	1.438
Seal Type	Single Lip Contact
Housing Width (in)	3.69
Duty Series	Standard
End Cap	No
Overall Height (in)	1.762
Speed [Max]	4650 rpm
Expansion	No
Bearing Type	Ball Bearing
Weight	2.84 LB
EAN or UPC	662461007914
