- Polyamide Material
features

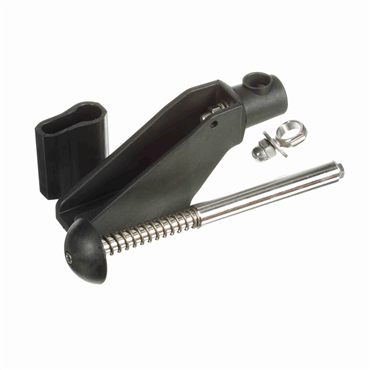

- Swivel top SpeedSet brackets. Required for curves, lange changes, and combiner areas. Allows in and out adjustment of the rails at any angle relative to the conveyor. SpeedSet brackets offer preset conveyor guide rail adjustments that are fast and accurate without the need of tools. Polyamide bracket. Stainless steel rod and spring assembly. PVC push knob. Includes one QPC spacer.
| Overall Height | 6.55 in |
| Measurement System | Inch |
| Material | POLYAMIDE |
| Adjustment Type | Horizontal, Swivel |
| Adjustment Range (Travel) | 2.5 in |
| Component Series | VG-203Q |
| Hardware Type | SpeedSet Bracket |
| Rod Size | 5/16 in |
| Rod Diameter | 0.75 in |
| Thread | 0.313 in |
| Overall Length | 3.29 in |
| Rod Center to Top of Slot | 3.45 |
| Sleeve Length | 5 in |
| Profile | 203Q |
| Straight/Swivel | Swivel |
| Weight | 1.62 LB |
| EAN or UPC | 787405170360 |
