- VG-511 Series
- 2600 lbs Static Load
description

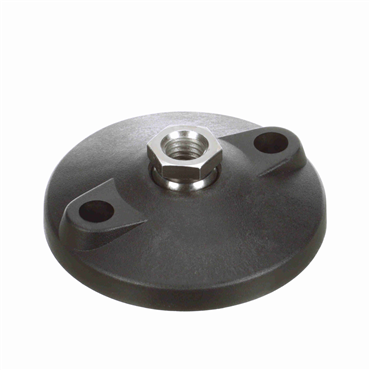

- Articulating Plastic Leveler
- Series: VG-511, Base Diameter: 4, Spindle Length: -mm, Thread: 5/8-11
features
- Reinforced polyamide base, stainless steel threaded ball. Valu Guide socket style levelers can be used on existing studs or with Valu Guide threaded rod to fabricate custom stem lengths. Two lag holes for anchoring to floor.
| Base Height | 0.73 in |
| Base Height with Pad (in) | 0.83 |
| Part Length (in) | 1.35 |
| Lag Hole Center Distance | 2.92 in |
| Material | POLYAMIDE |
| Thread | 5/8-11 in |
| Lag Hole Dia. | 0.48 in |
| Component Series | VG-511 |
| Lag Hole Center Distance (in) | 2.92 |
| Angle of Misalignment | ±15° |
| Thread (in) | 5/8-11 |
| Measurement System | Universal |
| Base Height (in) | 0.73 |
| Base Height with Pad | 0.83 in |
| Length | 1.35 in |
| Base Dia. | 4 in |
| Static Load (lbs) | 2600 |
| Number of Lag Holes | 2 |
| Static Load Capacity | 2600 lbs |
| Stem Material | Stainless Steel |
| No. of Lag Holes | 2 |
| Base Diameter (in) | 4 |
| Lag Hole Diameter (in) | 0.48 |
| Weight | 0.3 LB |
| EAN or UPC | 787405246690 |
