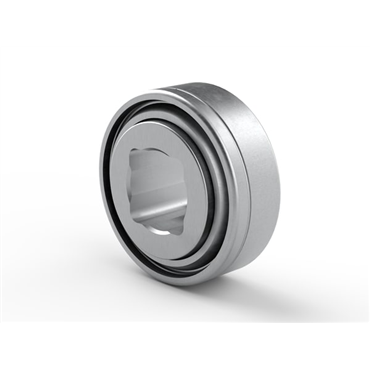

These special single row deep groove ball bearings are designed mainly for agricultural applications, such as disc harrows. The square bore enables ease of mounting on mating square shafts. The integral sealing and higher than standard grease fill can significantly prolong bearing service life and reduce maintenance efforts.
features
Designed mainly for agricultural applications
Square bore
Versatile, robust design
Integral sealing and higher than standard grease fill prolongs bearing service life
Bore Dia.
1.2 in, 29.972 mm
O.D.
3.3755 in, 85.738 mm
Temperature Range [Min]
-20 °F
Outer Ring Width
1.1874 in, 30.16 mm
Seal Material
Nitrile Rubber (NBR)
Seal Type
Contacting Seal
Inner Ring Width
1.4375 in, 36.512 mm
O.D. Type
Cylindrical
Temperature Range [Max]
300 °F
Bore Type
Special
Static Load Rating
4474 lbf, 19.9 kN
Lubricant
Grease
I.D.
1.1800 in, 29.972 mm
Width
1.4 in, 36.512 mm
Basic Dynamic Load Rating
7329 lbf, 32.6 kN
Material
Bearing Steel
Series
Gang disc Standard relubricatable bearings
Weight
2.01 LB
EAN or UPC
12001069653980
