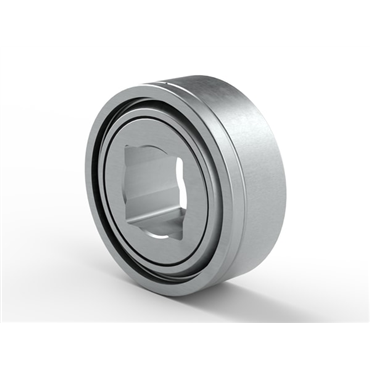

These special single row deep groove ball bearings are designed mainly for agricultural applications, such as disc harrows. The square bore enables ease of mounting on mating square shafts. The integral sealing and higher than standard grease fill can significantly prolong bearing service life and reduce maintenance efforts.
features
Designed mainly for agricultural applications
Square bore
Versatile, robust design
Integral sealing and higher than standard grease fill prolongs bearing service life
Bore Type
Special
O.D. Type
Cylindrical
Basic Dynamic Load Rating
7891 lbf, 35.1 kN
Seal Type
Contacting Seal
Temperature Range [Min]
-20 °F
Material
Bearing Steel
Outer Ring Width
1.188 in, 30.175 mm
Bore Dia.
1.2 in, 29.413 mm
Static Load Rating
5216 lbf, 23.2 kN
Seal Material
Nitrile Rubber (NBR)
Lubricant
Grease
I.D.
1.1800 in, 29.972 mm
Temperature Range [Max]
300 °F
O.D.
3.5433 in, 90 mm
Inner Ring Width
1.188 in, 30.175 mm
Width
1.2 in, 30.162 mm
Series
Square Bore relubricable
Weight
1.85 LB
