- 1.87 in Shaft Diameter
- 2.72 in Housing Bore Diameter
- 0.28 in Overall Width
- Nitrile Rubber (NBR) Lip Material
- Inch
description

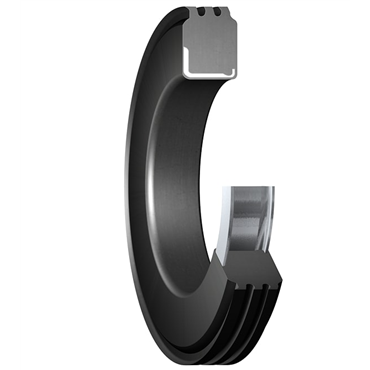

- Radial shaft seals are used between rotating and stationary machine components, or between components in relative motion. The seals have an outer covering of steel or elastomer, designed to fit the housing bore. The sealing lip is made of elastomer or thermoplastic for best sealing against the rotating shaft. A garter spring in the seal optimizes the sealing against the shaft.
features
- Many variants
- Easy installation
| Temperature Range [Min] | -40 °F |
| Lip Material | Nitrile Rubber (NBR) |
| Operating Temperature [Max] | 210 °F |
| Overall Width | 0.28 in, 7.14 mm |
| Housing Bore Dia. | 2.72 in, 68.99 mm |
| Spring Material | None |
| Surface Speed [Nom] | 2,000 ft/min |
| Lip Type | Triple Lip |
| Seal Application | Dirt Exclusion and Fluid Retention |
| Pressure | 3 psi |
| Lubricant | Grease |
| Construction | X13 |
| Temperature Range [Max] | 250 °F |
| Case Construction | Steel Case w/o Inner Case |
| Seal Design | Molded Design |
| Cover/Compensation Ring/Plate Required | No |
| Case Material | Steel |
| Speed | 0.02 ft/min |
| Misalignment & Runout (In. @ Feet Per Minute) | 0.015@1000, 0.005@2000 |
| Installation | Shaft Press Fit |
| Case Design | Metal Case |
| Shaft Dia. | 1.87 in, 47.57 mm |
| Operating Temperature [Min] | -40 °F |
| Inch/Metric | Inch |
| Lip Style | External |
| Design | X13 |
| Weight | 0.124 LB |
| EAN or UPC | 85311020244 |
