- 2 in Shaft Diameter
- 3 in Housing Bore Diameter
- 12 mm Overall Width
- Nitrile Rubber (NBR) Lip Material
description

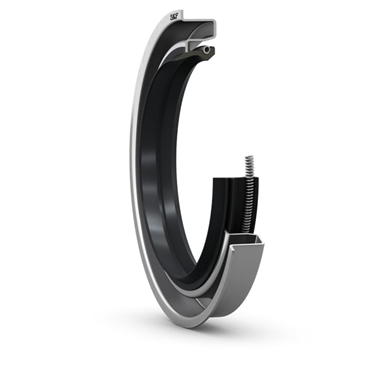

- Radial shaft seals are used between rotating and stationary machine components, or between components in relative motion. The seals have an outer covering of steel or elastomer, designed to fit the housing bore. The sealing lip is made of elastomer for best sealing against the rotating shaft. A garter spring in the seal optimizes the sealing against the shaft.
features
- High pumping rate
- With garter spring
- Accommodate misalignment
| Surface Speed [Nom] | 3,600 ft/min |
| Spring Material | Carbon Steel Garter |
| Inch/Metric | Metric |
| Temp Description | w/Bi-Directional Helix |
| Design | HMSA16 |
| Seal Design | Assembled Design |
| Temperature Range [Max] | 250 °F |
| Misalignment & Runout (In. @ Feet Per Minute) | 0.015@1000, 0.010@3600 |
| Lip Style | Internal |
| Lip Material | Nitrile Rubber (NBR) |
| Installation | Housing Press Fit |
| Temperature Range [Min] | -40 °F |
| Case Construction | Steel Case w/o Inner Case |
| Operating Temperature [Min] | -40 °F |
| Lip Type | Dual Lip |
| Operating Temperature [Max] | 210 °F |
| Overall Width | 12 mm |
| Lubricant | Oil or Grease |
| Shaft Dia. | 2 in, 63 mm |
| Cover/Compensation Ring/Plate Required | No |
| Pressure | 10 psi |
| Housing Bore Dia. | 3 in, 92 mm |
| Construction | HMSA16 |
| Seal Application | Light Dirt Exclusion |
| Weight | 0.168 LB |
| EAN or UPC | 85311166614 |
