SphercoCFM8N

CFM8N

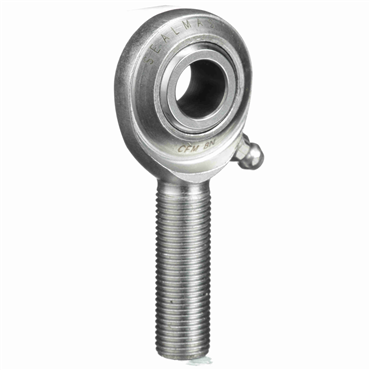

Carbon Steel 0.5 in ID Right-Handed Male Rod End
Item #105119773
  • 0.5 in Inner Diameter
  • Carbon Steel Housing Material
  • Right-Handed Thread Direction
SphercoCFM8N
Price Unavailable
Price Unavailable
Pricing is unavailable at this time. Please contact Customer Service for assistance.
Online Ordering Restricted
Please contact Customer Service for assistance.
Contact Customer Service
    Shipment Options
  • 0.5 in Inner Diameter
  • Carbon Steel Housing Material
  • Right-Handed Thread Direction
Head Dia. 1.312 in, 33 mm
Inside Ring Width 0.625 in, 16 mm
Bearing Type 2 Piece - Metal-to-Metal
Operating Temperature [Max] 250 ⁰F
Thread Size 0.5-20
Housing Material Carbon Steel
Type Male Spherical Plain Rod End
Inch/Metric Inch
Shaft Height 2.438 in, 62 mm
Insert Material Steel
Ball Material 52100 Alloy Steel
Series Spherco®
Angle of Misalignment 6⁰
Total Height 3.094 in, 79 mm
Thread Type UNF-3A
Ball Dia. 0.937 in, 24 mm
Thread Direction Right-Handed
Lubrication Type Lubricatable
Static Load Rating 9500 lbf, 42258 N
Head Width 0.5 in, 13 mm
I.D. 0.5 in, 13 mm
Thread Length 1.5 in, 38 mm
Weight 0.24 LB
EAN or UPC 637400181291
