AMI Bearings Inc.
KHLP211-35

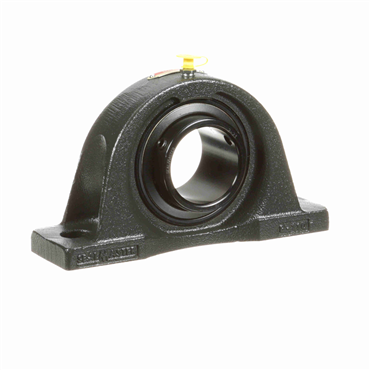

2-3/16" NARR ECCENTRIC COLLAR LOW BASE PILLOW BLOCK SINGLE ROW BALL BEARING
Item #101460026
AMI Bearings Inc.
UCLP211-35
Wide Inner Ring Cast Iron Housing Material Pillow Block
Item #101809189
- 2.1875" Shaft, 2.4375" Base to Center, Contact Seals, Setscrew Locking, Non-Expansion Type
description
- Created to handle stringent food handling requirements and serve in highly corrosive applications. All assembly components have been carefully selected to comply with all applicable federal food processing requirements without compromising bearing performance needs. These units are dimensionally stable under load and can operate in continuous temperatures up to 250 °F (brief exposure up to 350 °F).The finish will not scrape or flake off during use.
applications
- Agriculture
- Fans and blowers
- Food processing
- Conveyors
| Shaft Dia. | 2.1875 in |
| Series | YAK Series |
| Bolt Size | 5/8 in |
| Bearing Insert | GY1203KRRB |
| Bolt Hole Spacing Range [Min] | 5 25/32 in |
| Lubrication | Relubricatable |
| Seal Type | Contact Seals |
| Length Through Bore | 2.1875 in |
| Inch/Metric | Inch Bore |
| Housing Height | 4 29/32 in |
| Overall Width | 2 7/16 in |
| Base Width | 2 5/16 in |
| Housing Material | Cast Iron |
| Bolt Hole Spacing Range [Max] | 8 3/32 in |
| Base Length | 8 3/4 in |
| Insert Type | Steel Insert |
| Bolt Holes | 2 |
| Collar O.D. | 2.747 in |
| End Type | Open End |
| Bearing Design | Non-Expansion |
| Locking Device | Setscrew Locking Collar |
| Base Height | 3/4 in |
| Mounted Unit Duty | Normal-Duty |
| Bolt Hole Spacing | 6 15/16 in |
| Bearing Type | Ball Bearing |
| Pillow Block Type | Thru-Bolt |
| Housing Construction | 1 Piece |
| Weight | 8.87 LB |
| EAN or UPC | 87796157590 |
