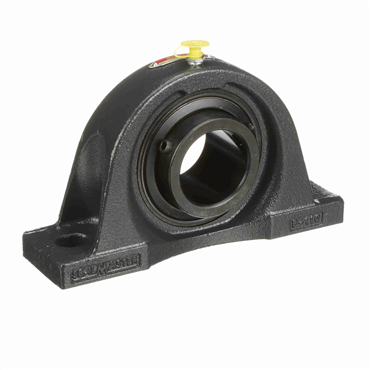

- 2" Shaft, 2.4375" Base to Center, Contact Seals, Setscrew Locking, Non-Expansion Type
description
- Created to handle stringent food handling requirements and serve in highly corrosive applications. All assembly components have been carefully selected to comply with all applicable federal food processing requirements without compromising bearing performance needs. These units are dimensionally stable under load and can operate in continuous temperatures up to 250 °F (brief exposure up to 350 °F).The finish will not scrape or flake off during use.
applications
- Agriculture
- Fans and blowers
- Food processing
- Conveyors
| Base Width | 2 5/16 in |
| Base Height | 3/4 in |
| End Type | Open End |
| Bolt Holes | 2 |
| Insert Type | Steel Insert |
| Series | YAK Series |
| Lubrication | Relubricatable |
| Base Length | 8 3/4 in |
| Bearing Type | Ball Bearing |
| Bearing Design | Non-Expansion |
| Collar No. | N/A |
| Seal Type | Contact Seals |
| Inch/Metric | Inch Bore |
| Pillow Block Type | Thru-Bolt |
| Bolt Hole Spacing Range [Min] | 5 25/32 in |
| Overall Width | 2 7/16 in |
| Housing Material | Cast Iron |
| Mounted Unit Duty | Normal-Duty |
| Housing Construction | 1 Piece |
| Shaft Dia. | 2 in |
| Length Through Bore | 2.1875 in |
| Bolt Hole Spacing | 6 15/16 in |
| Bearing Insert | GY1200KRRB |
| Dynamic Load Rating | 10800 lbf |
| Bolt Size | 5/8 in |
| Locking Device | Setscrew Locking Collar |
| Collar O.D. | 2.747 in |
| Housing Height | 4 29/32 in |
| Bolt Hole Spacing Range [Max] | 8 3/32 in |
| Weight | 8.056 LB |
| EAN or UPC | 87796157583 |
