- 2.9375" Shaft, 3.5" Base to Center, Contact Seals, Setscrew Locking, Non-Expansion Type
description

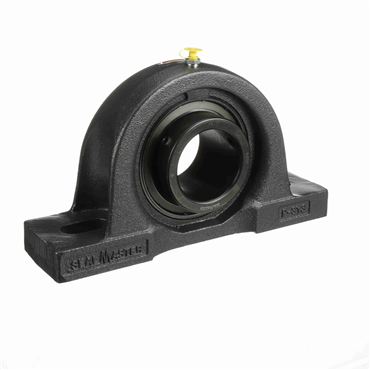

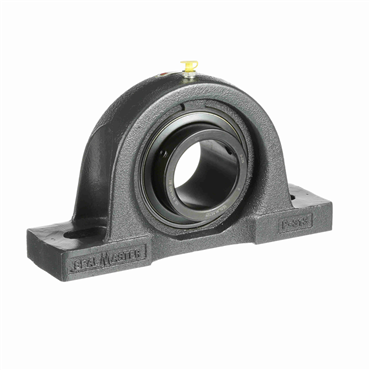

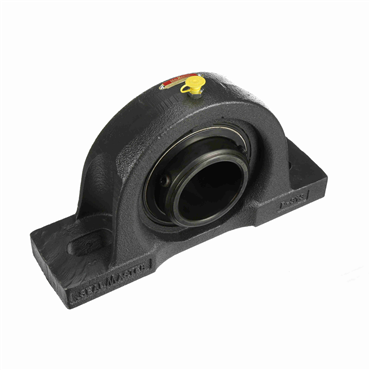

- The Fafnir YASM medium-duty pillow blocks feature Fafnir's GYM-KRRB bearing inserts. These pillow blocks are ideal for conveyor, fan and blower, sawmill, and feed and grain handling applications. The durable, cast iron housings are powder paint coated, and maintain an excellent finish while resisting corrosion, chemical and weather exposure. Fafnir's industrial-duty pillow blocks incorporate premium features designed to extend bearing life and will replace competitive designs.
applications
- Agriculture
- Fans and blowers
- Food processing
- Conveyors
| Seal Type | Contact Seals |
| Pillow Block Type | Thru-Bolt |
| Shaft Dia. | 2.9375 in |
| Bolt Holes | 2 |
| Base Height | 1 1/4 in |
| Series | YASM Series |
| Bolt Hole Spacing Range [Min] | 7 |
| Bolt Size | 3/4 in |
| Bearing Insert | GYM1215KRRB |
| Base Length | 13 in |
| Insert Type | Steel Insert |
| Base Width | 3 1/2 in |
| Lubrication | Relubricatable |
| Bolt Hole Spacing | 9 in |
| Inch/Metric | Inch Bore |
| Bearing Design | Non-Expansion |
| Housing Construction | 1 Piece |
| Bearing Type | Ball Bearing |
| Collar O.D. | 3.618 in |
| Overall Width | 3 11/16 in |
| Housing Material | Cast Iron |
| Mounted Unit Duty | Medium-Duty |
| Housing Height | 7 in |
| Length Through Bore | 3.6875 in |
| Bolt Hole Spacing Range [Max] | 11 in |
| Locking Device | Setscrew Locking Collar |
| End Type | Open End |
| Weight | 15.0 LB |
| EAN or UPC | 87796189683 |
