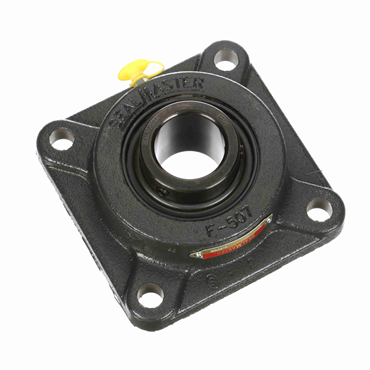

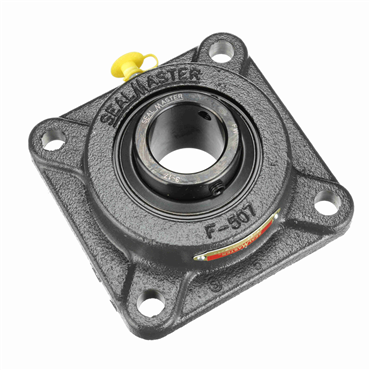

- YCJM Medium-Duty Series 4-Bolt Flange Unit
- 1.4375 in Shaft
- Non-Expansion
- Ball Bearing
- Cast Iron Housing
description
- The YCJM medium-duty, four-bolt, flanged cartridges feature Fafnir's GYM-KRRB bearing inserts. These units are ideal for conveyor, fan and blower, sawmill, and feed and grain handling applications. The durable, cast iron housings are powder paint coated, and maintain an excellent finish while resisting corrosion, chemical and weather exposure. Fafnir's industrial-duty flanged cartridges incorporate premium features designed to extend bearing life and will replace competitive designs.
applications
- Agriculture
- Fans and blowers
- Food processing
- Conveyors
| Flange Thickness | 0.5625 in |
| Housing Width | 1 1/2 in |
| Duty | Medium-Duty |
| Lubrication | Relubricatable |
| Housing Length | 5 1/8 in |
| Housing Material | Cast Iron |
| Overall Width | 2 1/8 in |
| Bolt Circle Dia. | N/A |
| Seal Type | Contact Seals |
| Flange Type | 4-Bolt Flange |
| Housing Construction | One Piece |
| Bolt Size | 1/2 in |
| Shaft Dia. | 1.4375 in |
| Length Through Bore | 1.9375 in |
| End Type | Open End |
| Bearing Insert | GYM1107KRRB |
| Style | 4-Bolt Flange |
| Inch/Metric | Inch |
| Series | YCJM |
| Bearing Design | Non-Expansion |
| Locking Device | Setscrew Locking Collar |
| Housing Height | 5 1/8 in |
| Mounted Unit Duty | Medium Duty |
| Bearing Type | Ball Bearing |
| Bolt Hole Spacing | 4 in |
| Weight | 5.34 LB |
| EAN or UPC | 87796189553 |
