YCJM2 15/16

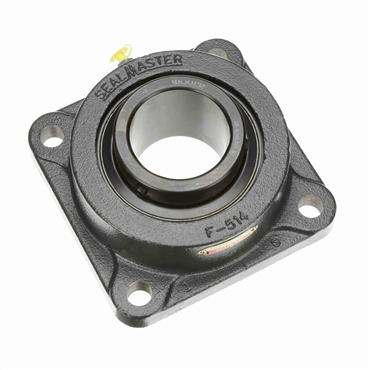

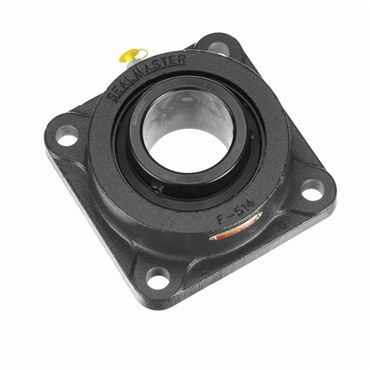

YCJM Medium-Duty Series 4-Bolt Flange Unit

Item #101020493
each
    Shipment Options

Alternate Products

Product details

  • 2.9375" Shaft, Contact Seals, Setscrew Locking, Regreasable

description

  • The YCJM medium-duty, four-bolt, flanged cartridges feature Fafnir's GYM-KRRB bearing inserts. These units are ideal for conveyor, fan and blower, sawmill, and feed and grain handling applications. The durable, cast iron housings are powder paint coated, and maintain an excellent finish while resisting corrosion, chemical and weather exposure. Fafnir's industrial-duty flanged cartridges incorporate premium features designed to extend bearing life and will replace competitive designs.

applications

  • Agriculture
  • Fans and blowers
  • Food processing
  • Conveyors

Specifications

Locking Device Setscrew Locking Collar
Seal Type Contact Seals
Housing Length 7 3/4 in
Inch/Metric Inch
Lubrication Relubricatable
Duty Medium-Duty
Bearing Insert GYM1215KRRB
Housing Width 2 5/8 in
End Type Open End
Bolt Circle Dia. 8 31/64 in
Housing Material Cast Iron
Bolt Hole Spacing 6 in
Flange Thickness 7/8 in
Style 4-Bolt Flange
Shaft Dia. 2.9375 in
Flange Type 4-Bolt Flange
Bolt Size 3/4 in
Overall Width 3 1/2 in
Length Through Bore 3.0625 in
Mounted Unit Duty Medium-Duty
Bearing Design Non-Expansion
Housing Construction 1 Piece
Housing Height 7 3/4 in
Bearing Type Ball Bearing
Weight 17.66 LB
EAN or UPC 87796189690
