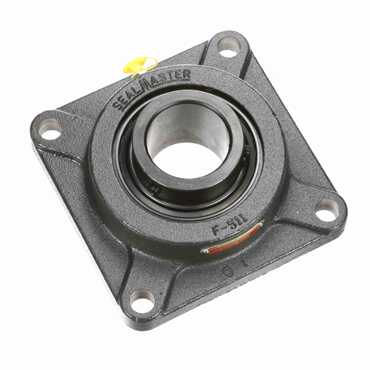

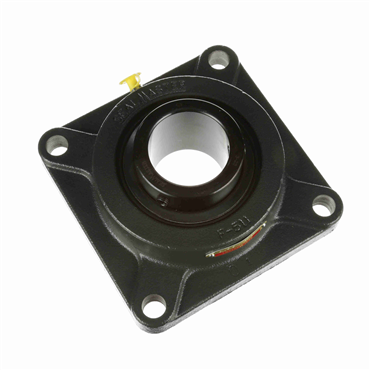

- YCJM Medium-Duty Series 4-Bolt Flange Unit
- 2.1875 in Shaft
- Non-Expansion
- Ball Bearing
- Cast Iron Housing
description
- The YCJM medium-duty, four-bolt, flanged cartridges feature Fafnir's GYM-KRRB bearing inserts. These units are ideal for conveyor, fan and blower, sawmill, and feed and grain handling applications. The durable, cast iron housings are powder paint coated, and maintain an excellent finish while resisting corrosion, chemical and weather exposure. Fafnir's industrial-duty flanged cartridges incorporate premium features designed to extend bearing life and will replace competitive designs.
applications
- Agriculture
- Fans and blowers
- Food processing
- Conveyors
| Flange Type | 4-Bolt Flange |
| Locking Device | Setscrew Locking Collar |
| Housing Construction | One Piece |
| Duty | Medium-Duty |
| Flange Thickness | 11/16 in |
| End Type | Open End |
| Inch/Metric | Inch |
| Housing Material | Cast Iron |
| Lubrication | Relubricatable |
| Shaft Dia. | 2.1875 in |
| Bearing Insert | GYM1203KRRB |
| Bolt Size | 5/8 in |
| Length Through Bore | 2.5625 in |
| Housing Width | 1 15/16 in |
| Bolt Hole Spacing | 5 5/8 in |
| Overall Width | 2.9063 in |
| Bolt Circle Dia. | N/A |
| Bearing Design | Non-Expansion |
| Series | YCJM |
| Style | 4-Bolt Flange |
| Bearing Type | Ball Bearing |
| Housing Length | 6 7/8 in |
| Housing Height | 6 7/8 in |
| Mounted Unit Duty | Medium Duty |
| Seal Type | Contact Seals |
| Weight | 14.912 LB |
| EAN or UPC | 87796189577 |
