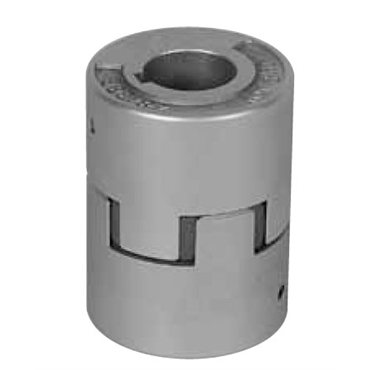

- 65/75 Coupling Size
- Jaw Coupling Type
- Cast Iron Material
- 74.93 mm Length Through Bore
applications
- Pumps
- Gearboxes
- Compressors
- Blowers
- Mixers
- Conveyors
- Generator sets
features
- No lubrication required
- No metal to metal contact
- Still performs if elastomer fails
- Easy installation
- Resists oil, dirt, sand, moisture, and grease
- Torsionally softer jaw design
- 1.5° angular misalignment capability
| Material | Cast Iron |
| Insert Style | Unbored |
| Coupling Style | Curved Jaw |
| Bore Dia. [Min] | 12.0000 mm |
| Bore Depth | 2.95 in |
| Bore Dia. [Max] | 65.0000 mm |
| Coupling Size | 65/75 |
| Torque [Max] | 11060 in lb |
| Coupling Type | Jaw |
| Length Through Bore | 74.93 mm |
| Distance Between Spider and Hub Face | 4.57 mm |
| Torque [Min] | 5530 in lb |
| Outside Dia. | 134.87 mm |
| Torque | 625 N-m |
| Temperature Range [Min] | -40 °F |
| Set Screw Size | 3/8-16 |
| Bore Type | Rough Stock Bore |
| Input Bore Range | 0" to 2 15/16" |
| Color | Gray |
| RPM [Max] | 4250 rpm |
| Hub Type | A |
| Overall Length | 105.41 mm |
| Hub Dia. | 4.53 in |
| Spider Inside Diameter | 68 mm |
| Spider Thickness | 26 mm |
| Angular Displacement | 0.11 in |
| Temperature Range [Max] | 212 °F |
| Spider Outside Diameter | 135 mm |
| Weight | 12.0 LB |
| EAN or UPC | 685144624178 |
