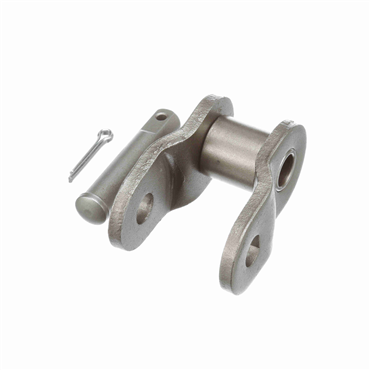

100H OFFSET LK

Single Strand ANSI Roller Chain Link

Item #100800883
each
    Shipment Options

Alternate Products

Product details

  • #100
  • 1 Strand
  • Cotter Pin Offset (Half) Link
  • Heavy Series
  • 1 1/4 in Pitch

features

  • Ring-coined connecting links with same fatigue strength as base chain providing improved capacity

Specifications

Chain Construction Part (CL, Ol, RL)
Link Type Cotter Pin
Duty Heavy Series
Pin Material Carbon Steel
Chain Series 100, 100-2, 100-3, 100-4, 100-6, 100-8
Link Plates Thickness 0.187 in
Chain Type ANSI
Roller Width 3/4 in
Chain Pitch 1 1/4 in
Pin Diameter 3/8 in
No. of Strands Across 1
Chain No. 100
Type Offset (Half) Link
Pin Overall Length 1.823 in
Material Carbon Steel
Roller Dia. 3/4 in
Rated Working Load 5,510 lb
Link Plates Height 1.185 in
Weight 0.32 LB
EAN or UPC 97039177100
