200H RIV

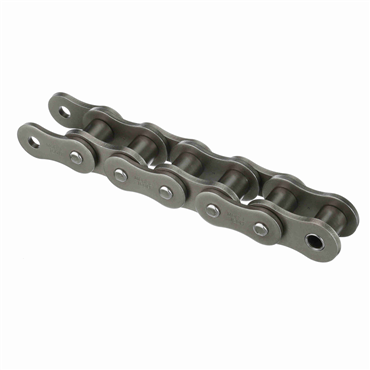

Standard Roller Chain

Item #101639942

Heavy Duty

+ Show More

Auto Replenish

Foot One-time purchase

Product Details

PerforMax™ solid lube grooved bushings included in sizes 80 through 140 to maximize wear life
Long lasting, heat-treated, solid rollers
Heat-treated pins that are fabricated from high grade steel
Ring-coined connecting links with same fatigue strength as base chain providing improved capacity
Higher horsepower capacity
Built to handle shock loads
Dynamic prestressing
Complies with RoHS restrictions on the use of certain hazardous substances in electrical and electronic equipment

Specifications

Pin Overall Length	3.583 in
Link Plates Thickness	3/8 in
Pin Diameter	0.781 in
ANSI No.	200
Average Tensile Strength	103,630 lbf
Material	Carbon Steel
Width Between Roller Link Plates	1.5 in
Side Bow	No
Chain Type	ANSI
Pins & Rollers	Standard
Rated Working Load	17,600 lb
Duty	Heavy
Chain Construction	Riveted
Chain No.	200
Self-Lubricating	No
Package Type	10 Foot Box
Standard Type of Pin	Riveted
Maximum Allowable Load	17600 lb
Series	Standard
No. of Strands Across	1
Link Plates Height	2.374 in
Chain Pitch	2 1/2 in
Chain Series	200, 200-2, 200-3, 200-4, 200-6, 200-8
Roller Dia.	1.562 in
Pin Material	Carbon Steel
Roller Width	1 1/2 in
Weight	12.98 LB
EAN or UPC	97039177360
