50SS304RIV

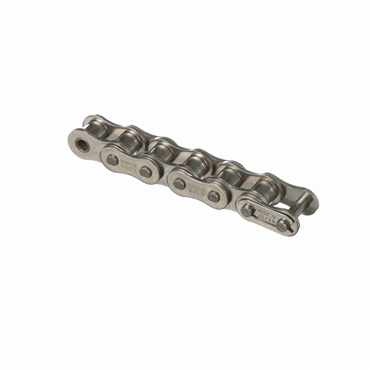

Stainless Steel Roller Chain

Item #101642052
Foot
    Shipment Options
  • Pre-Packed QuantitiesPre-Packed Quantities

Alternate Products

Product details

  • #50 Chain
  • 1 Strand
  • 5/8" Pitch
  • Riveted
  • 304 Stainless

description

  • SS Series chains are made completely of 304 stainless steel. SS Series has an excellent resistance to corrosion & temperature extremes. It is generally considered non-magnetic, although some permeability can be found in these chains. This is caused by the cold working of the components during the manufacturing process. If more complete non-magnetic permeability is required, we suggest our NS Series.

features

  • Superior corrosion resistance
  • Withstands harsh chemicals and extreme temperatures
  • 304 stainless steel components
  • Complies with RoHS restrictions on the use of certain hazardous substances in electrical and electronic equipment
  • Can be used in a variety of industries, including food industry
  • Ideal for applications with corrosive, high temperature environments where harsh chemicals or caustic solutions are utilized

Specifications

Width Between Roller Link Plates 0.375 in
Duty Standard
Roller Dia. 0.4 in
Pin Material 304 Stainless
Chain Construction Riveted
Pins & Rollers Standard
Rated Working Load [Max] 154 lb
Link Plates Height 0.591 in
Chain Series 50, 50-2, 50-3, 50-4
ANSI No. 50
Pin Diameter 0.2 in
Material 304 Stainless Steel
Package Type 10 Foot Box
Side Bow No
Roller Width 3/8 in
Pin Overall Length 0.878 in
Maximum Allowable Load 154 lb
Chain Type ANSI
No. of Strands Across 1
Chain No. 50
Chain Pitch 5/8 in
Self-Lubricating No
Link Plates Thickness 0.08 in
Weight 0.737 LB
EAN or UPC 97039186904
