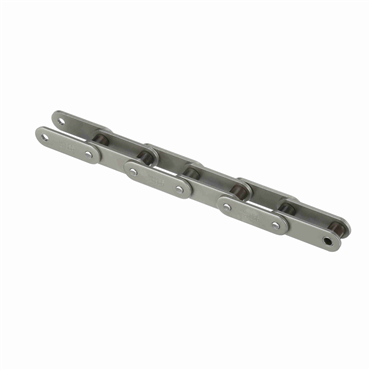

Extended Pitch Conveyor Series Roller Chain

C2080H RIV

Extended Pitch Conveyor Series Roller Chain
Item #100800750
  • #2080 Chain
  • 1 Strand
  • 2" Pitch
  • Riveted
  • Carbon Steel
  • Heavy Series
  • Standard Pins & Rollers
  • 10 Foot Box
+ Show More + Show Less
Extended Pitch Conveyor Series Roller Chain
    Shipment Options
  • Pre-Packed QuantitiesPre-Packed Quantities
  • #2080 Chain
  • 1 Strand
  • 2" Pitch
  • Riveted
  • Carbon Steel

description

  • These chains provide a high quality conveying medium for material handling equipment, road building machinery, farming implements, baking, packaging and bottling equipment.

applications

  • Heavy load
  • Severe operating conditions
  • Low speed
  • Relatively long center distances

features

  • Long lasting, heat-treated, solid rollers
  • Heat-treated pins that are fabricated from high grade steel
  • Higher horsepower capacity
  • Built to handle shock loads
  • Complies with RoHS restrictions on the use of certain hazardous substances in electrical and electronic equipment
Duty Heavy Series
Average Tensile Strength 15400 lb
Chain No. 2080
Width Between Roller Link Plates 0.625 in
Chain Series 2080, 2082, 2088, 2089
Rated Working Load 2,400 lb
Chain Construction Riveted
Pin Material Carbon Steel
Roller Dia. 5/8 in
Package Type 10 Foot Box
Material Carbon Steel
Link Plates Height 0.906 in
Number of Links per 10 ft 60
Link Plates Thickness 0.156 in
Self-Lubricating No
Chain Pitch 2 in
Chain Type Standard Roller
Maximum Allowable Load 2400 lb
Side Bow No
No. of Strands Across 1
Roller Width 5/8 in
Pin Diameter 0.312 in
Pins & Rollers Standard
Pin Overall Length 1.543 in
Sidebar Type Heavy Side Plates
Pitch 2 in
Weight 1.668 LB
EAN or UPC 97039181442
