Alternate Products

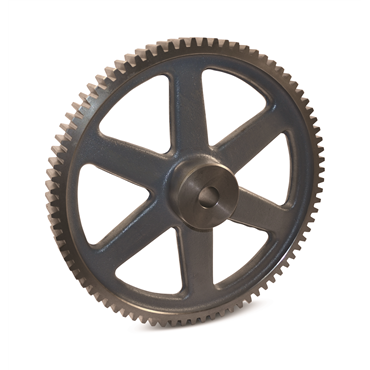

- B3 Gear Style
- 14.5° Pressure Angle
- 108 Teeth
- 3 Diametral Pitch
- 8.7272 in Pitch Diameter
description
- Martin Stock Spur Gears are available in five different styles. Contact your local Applied® service center for other styles. Steel gears are furnished in plain style and plain style with hub. Cast gears are furnished plain with hub, web with lightening holes and with spoke. Cast gears are cast with larger hub to provide extra strength and to allow for larger bores.
features
- More cost effective, quieter running and metallic options
- Four ball wear test 40 kg: 63 mm
- Reliability from steel, cast iron and brass
- Parallel shaft applications
- Base oil viscosity: 500 SUS @ 100 °F
| Set Screw | No |
| Inch/Metric | Inch |
| Bore Size | 1.9375 in |
| Torque at 200 RPM | 18592.38 lb/in |
| Pitch Diameter [Min] | 8.7272 in |
| Bore Dia. [Min] | 1 15/16 in |
| Bore Size [Max] | 3.5 in |
| Torque at 1200 RPM | 3939.063 lb/in |
| Bore Type | Finished Bore |
| Pitch Dia. | 36 in |
| Pitch Diameter | 36 in |
| Class | 6 |
| Material | Cast Iron |
| Material External Use | Cast Iron |
| Torque at 1800 RPM | 2696.07 lb/in |
| Pressure Angle | 14 1/2 degrees |
| Torque at 600 RPM | 7457.958 lb/in |
| Material Internal Use | Cast Iron |
| Style | Spoke Style |
| Bore Size [Min] | 1.938 in |
| Hardened Teeth | Without Hardened Teeth |
| Keyway | w/o Keyway |
| Finished Bore Size | 1.938 in |
| Outside Dia. [Min] | 36.666 in |
| Hub O.D. | 6 in |
| Set Screw Size | N/A |
| Torque at 900 RPM | 5182.056 lb/in |
| Hub Projection | 1.765 in |
| Hub Style | B |
| Length Through Bore | 4.75 in |
| Torque at 300 RPM | 13655.42 lb/in |
| Hub Dia. | 5.9845 in |
| Origin | Reborable |
| Gear Style | B3 |
| Outside Dia. | 36.666 in |
| Type | B3 |
| Face Width | 3 in |
| Diametral Pitch | 3 |
| No. of Teeth | 108 |
| AGMA Quality | 6 |
| O.D. | 36.667 in |
| Bore Dia. [Max] | 3 11/16 in |
| Weight | 228.0 LB |
| EAN or UPC | 697950053639 |
