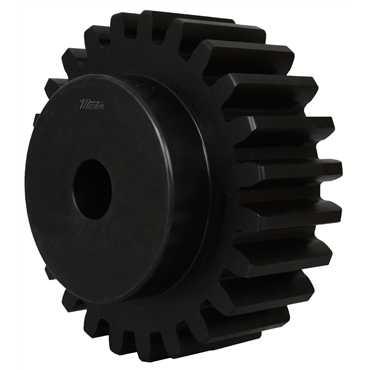

- B Gear Style
- 14.5° Pressure Angle
- 24 Teeth
- 3 Diametral Pitch
- 8 in Pitch Diameter
description
- Martin Stock Spur Gears are available in five different styles. Contact your local Applied® service center for other styles. Steel gears are furnished in plain style and plain style with hub. Cast gears are furnished plain with hub, web with lightening holes and with spoke. Cast gears are cast with larger hub to provide extra strength and to allow for larger bores.
features
- More cost effective, quieter running and metallic options
- Four ball wear test 40 kg: 63 mm
- Reliability from steel, cast iron and brass
- Parallel shaft applications
- Base oil viscosity: 500 SUS @ 100 °F
| Torque at 1200 RPM | 4674.354 lb/in |
| Face Width | 3 in |
| Bore Type | Finished Bore |
| O.D. | 8.667 in |
| Material Internal Use | Carbon Steel |
| Keyway | w/o Keyway |
| Hub O.D. | 5.5 in |
| Inch/Metric | Inch |
| Pitch Diameter | 8 in |
| No. of Teeth | 24 |
| Type | B |
| Bore Dia. [Min] | 1 7/16 in |
| Set Screw | No |
| Material External Use | Steel |
| Style | Hub |
| Torque at 300 RPM | 11764.67 lb/in |
| Hardened Teeth | Without Hardened Teeth |
| Material | Steel |
| Torque at 1800 RPM | 3326.319 lb/in |
| Hub Projection | 1.25 in |
| Set Screw Size | N/A |
| AGMA Quality | 6 |
| Hub Style | B |
| Origin | Reborable |
| Torque at 900 RPM | 5812.306 lb/in |
| Pitch Dia. | 8 in |
| Bore Dia. [Max] | 3 1/4 in |
| Outside Dia. | 8.666 in |
| Class | 6 |
| Diametral Pitch | 3 |
| Hub Dia. | 5 1/2 in |
| Torque at 600 RPM | 7773.083 lb/in |
| Bore Size [Min] | 1.438 in |
| Finished Bore Size | 1.438 in |
| Length Through Bore | 4.25 in |
| Pitch Diameter [Min] | 8 in |
| Torque at 200 RPM | 14180.63 lb/in |
| Gear Style | B |
| Bore Size [Max] | 3.25 in |
| Bore Size | 1.4375 in |
| Outside Dia. [Min] | 8.666 in |
| Pressure Angle | 14 1/2 degrees |
| Weight | 48.2 LB |
| EAN or UPC | 697950053370 |
