- B Gear Style
- 14.5° Pressure Angle
- 32 Teeth
- 4 Diametral Pitch
- 8 in Pitch Diameter
description

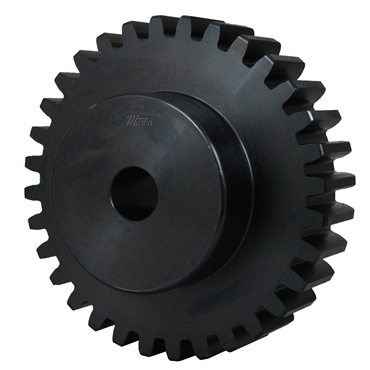

- Martin Stock Spur Gears are available in five different styles. Contact your local Applied® service center for other styles. Steel gears are furnished in plain style and plain style with hub. Cast gears are furnished plain with hub, web with lightening holes and with spoke. Cast gears are cast with larger hub to provide extra strength and to allow for larger bores.
features
- More cost effective, quieter running and metallic options
- Four ball wear test 40 kg: 63 mm
- Reliability from steel, cast iron and brass
- Parallel shaft applications
- Base oil viscosity: 500 SUS @ 100 °F
| Face Width | 2 in |
| Hub O.D. | 4.75 in |
| Set Screw | No |
| Diametral Pitch | 4 |
| Bore Dia. [Max] | 2 3/4 in |
| Torque at 200 RPM | 5987.375 lb/in |
| Bore Size | 1.250 in |
| Outside Dia. [Min] | 8.5 in |
| Material Internal Use | Carbon Steel |
| Class | 6 |
| No. of Teeth | 32 |
| Hub Style | B |
| Torque at 300 RPM | 5042 lb/in |
| AGMA Quality | 6 |
| Bore Type | Finished Bore |
| Set Screw Size | N/A |
| Inch/Metric | Inch |
| Keyway | w/o Keyway |
| O.D. | 8.5 in |
| Material External Use | Steel |
| Torque at 1200 RPM | 2153.354 lb/in |
| Gear Style | B |
| Torque at 1800 RPM | 1575.625 lb/in |
| Type | B |
| Pressure Angle | 14 1/2 degrees |
| Style | Hub |
| Length Through Bore | 3.5 in |
| Torque at 600 RPM | 3466.375 lb/in |
| Hardened Teeth | Without Hardened Teeth |
| Hub Dia. | 4 3/4 in |
| Material | Steel |
| Bore Size [Max] | 2.813 in |
| Hub Projection | 1.5 in |
| Bore Size [Min] | 1.25 in |
| Finished Bore Size | 1.25 in |
| Pitch Diameter [Min] | 8 in |
| Origin | Reborable |
| Bore Dia. [Min] | 1 1/4 in |
| Pitch Dia. | 8 in |
| Torque at 900 RPM | 2661.056 lb/in |
| Outside Dia. | 8.5 in |
| Pitch Diameter | 8 in |
| Weight | 34.36 LB |
| EAN or UPC | 697950053875 |
