Alternate Products

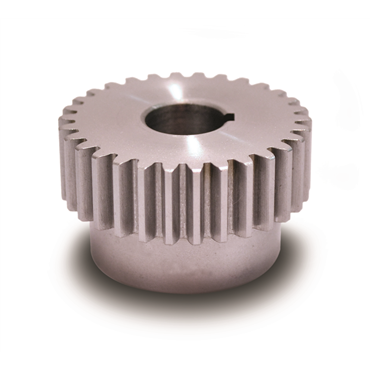

- B Gear Style
- 20° Pressure Angle
- 20 Teeth
- 20 Diametral Pitch
- 1 in Pitch Diameter
description
- Martin Stock Spur Gears are available in five different styles. Contact your local Applied® service center for other styles. Steel gears are furnished in plain style and plain style with hub. Cast gears are furnished plain with hub, web with lightening holes and with spoke. Cast gears are cast with larger hub to provide extra strength and to allow for larger bores.
features
- More cost effective, quieter running and metallic options
- Four ball wear test 40 kg: 63 mm
- Reliability from steel, cast iron and brass
- Parallel shaft applications
- Base oil viscosity: 500 SUS @ 100 °F
| Pitch Diameter | 1 in |
| Face Width | 0.5 in |
| Hub O.D. | 0.859 in |
| Outside Dia. [Min] | 1.1 in |
| Bore Dia. [Min] | 1/2 in |
| Torque at 900 RPM | 82.63277 lb/in |
| Set Screw | No |
| Hub Projection | 0.438 in |
| Pressure Angle | 20 degrees |
| Pitch Dia. | 1 in |
| Origin | Reborable |
| Torque at 300 RPM | 92.43667 lb/in |
| Hub Dia. | 0.8594 in |
| Hardened Teeth | Without Hardened Teeth |
| Bore Size | 0.500 in |
| Inch/Metric | Inch |
| Material External Use | Steel |
| Bore Type | Finished Bore |
| Torque at 600 RPM | 87.18459 lb/in |
| Torque at 200 RPM | 94.5375 lb/in |
| AGMA Quality | 6 |
| Diametral Pitch | 20 |
| Gear Style | B |
| Torque at 1800 RPM | 70.0278 lb/in |
| Bore Size [Min] | 0.5 in |
| Finished Bore Size | 0.5 in |
| Hub Style | B |
| Outside Dia. | 1.1 in |
| Pitch Diameter [Min] | 1 in |
| Length Through Bore | 0.938 in |
| Set Screw Size | N/A |
| Type | B |
| Torque at 1200 RPM | 77.73083 lb/in |
| No. of Teeth | 20 |
| Bore Size [Max] | 0.625 in |
| Material Internal Use | Carbon Steel |
| Class | 6 |
| O.D. | 1.1 in |
| Keyway | w/o Keyway |
| Bore Dia. [Max] | 1/2 in |
| Material | Steel |
| Style | Hub |
| Weight | 0.13 LB |
| EAN or UPC | 697950263526 |
