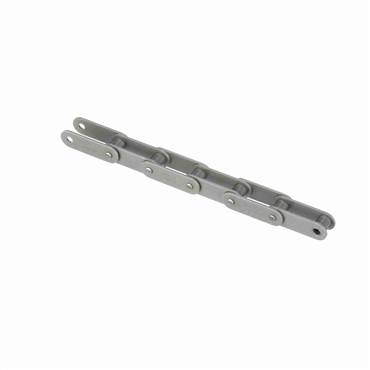

Extended Pitch Conveyor Series Roller Chain

C2040RIV

Extended Pitch Conveyor Series Roller Chain
Item #100800744
  • #2040 Chain
  • 1 Strand
  • 1" Pitch
  • Riveted
  • Carbon Steel
  • Standard-Duty
  • Standard Pins & Rollers
  • 10 Foot Box
+ Show More + Show Less
Extended Pitch Conveyor Series Roller Chain
Price Unavailable
Price Unavailable
Pricing is unavailable at this time. Please contact Customer Service for assistance.
Online Ordering Restricted
Please contact Customer Service for assistance.
Contact Customer Service
    Shipment Options
  • Pre-Packed QuantitiesPre-Packed Quantities
  • #2040 Chain
  • 1 Strand
  • 1" Pitch
  • Riveted
  • Carbon Steel

description

  • These chains provide a high quality conveying medium for material handling equipment, road building machinery, farming implements, baking, packaging and bottling equipment.

applications

  • Low speed
  • Moderate load
  • Relatively long center distances

features

  • Long lasting, heat-treated, solid rollers
  • Heat-treated pins that are fabricated from high grade steel
  • Higher horsepower capacity
  • Built to handle shock loads
  • Complies with RoHS restrictions on the use of certain hazardous substances in electrical and electronic equipment
Material Carbon Steel
Duty Standard-Duty
Chain Type Standard Roller
Average Tensile Strength 3750 lb
Roller Dia. 0.312 in
Width Between Roller Link Plates 0.312 in
Side Bow No
Chain Series 2040, 2042, 2048, 2049
Rated Working Load 595 lb
Number of Links per 10 ft 120
Pin Diameter 0.156 in
Chain Pitch 1 in
Roller Width 0.312 in
Pin Overall Length 0.717 in
Maximum Allowable Load 595 lb
Package Type 10 Foot Box
Self-Lubricating No
Chain No. 2040
No. of Strands Across 1
Pins & Rollers Standard
Chain Construction Riveted
Pin Material Carbon Steel
Link Plates Thickness 0.06 in
Pitch 1 in
Link Plates Height 0.472 in
Standard Connection Spring Clip Type
Weight 0.396 LB
EAN or UPC 97039181183
